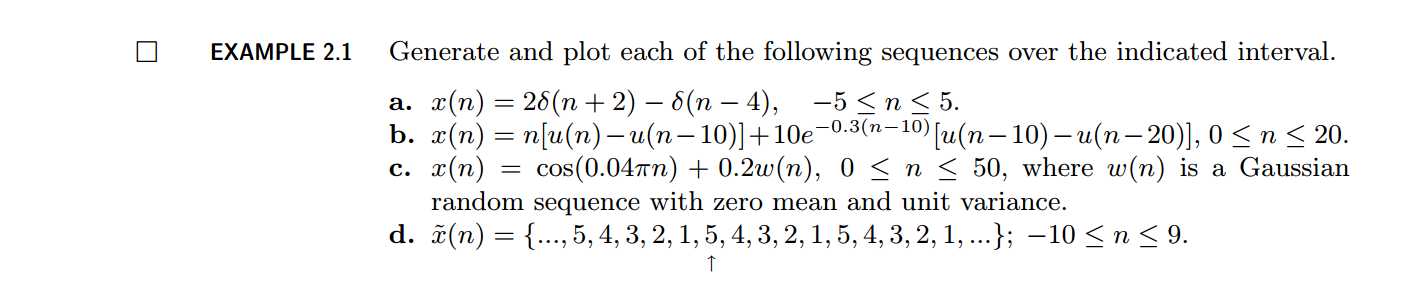

DSP using Matlab 书内练习Example 2.1

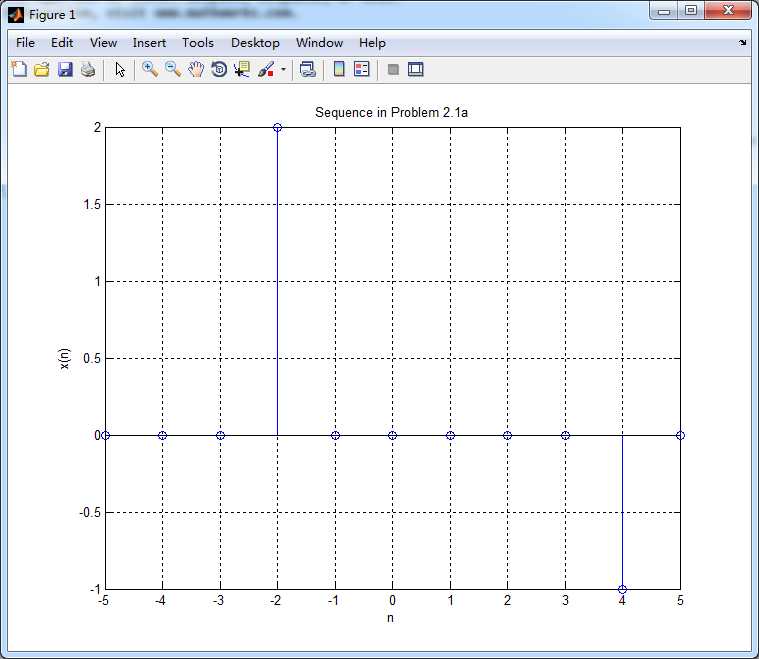

n = [-5:5];
x=2*impseq(-2,-5,5) - impseq(4,-5,5);

set(gcf,‘Color‘,[1,1,1])                  % 改变坐标外围背景颜色
stem(n,x); title(‘Sequence in Problem 2.1a‘);
xlabel(‘n‘); ylabel(‘x(n)‘); grid on;

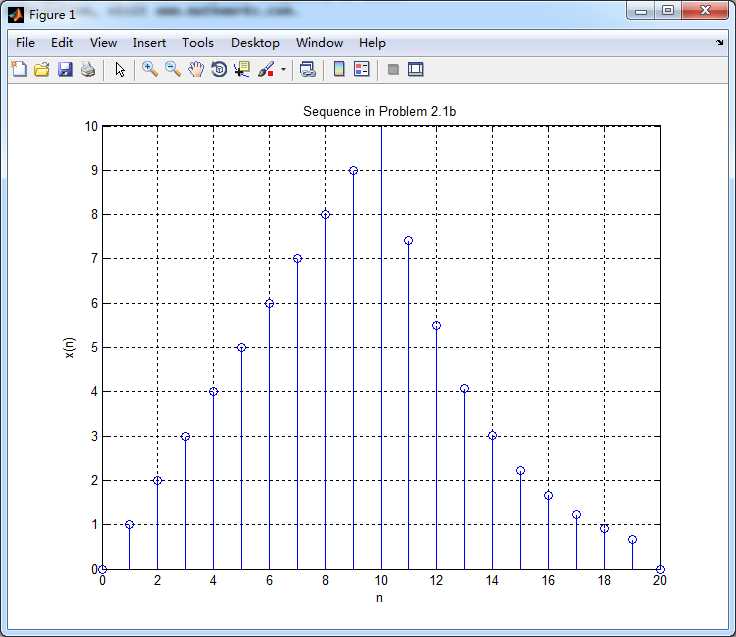

n = [0:20];
x1 = n .* (stepseq(0,0,20) - stepseq(10,0,20));
x2 = 10 * exp(-0.3*(n-10)) .* (stepseq(10,0,20) - stepseq(20,0,20));
x = x1 + x2;

set(gcf,‘Color‘,[1,1,1])                  % 改变坐标外围背景颜色
stem(n,x); title(‘Sequence in Problem 2.1b‘)
xlabel(‘n‘); ylabel(‘x(n)‘);grid on;

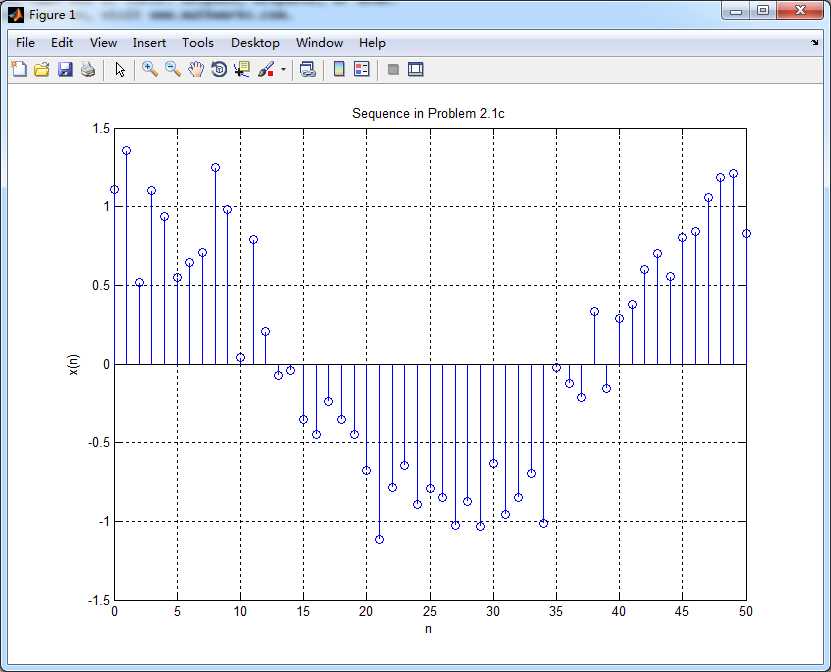

n = [0:50]; x = cos(0.04*pi*n)+0.2*randn(size(n));

set(gcf,‘Color‘,[1,1,1])                  % 改变坐标外围背景颜色
stem(n,x); title(‘Sequence in Problem 2.1c‘)
xlabel(‘n‘);  ylabel(‘x(n)‘); grid on;

%%

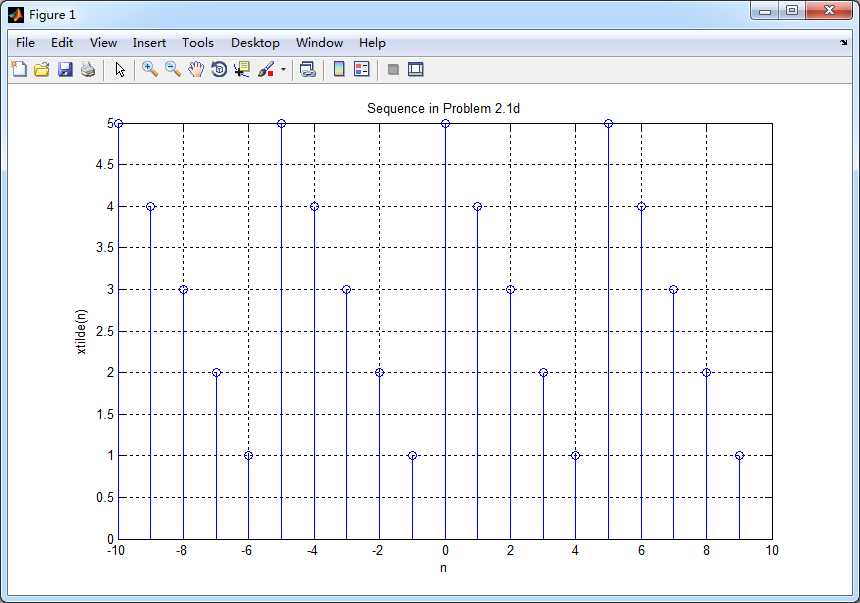

%% x(n) = {...,5,4,3,2,1,5,4,3,2,1,5,4,3,2,1,...}; -10<n<9
%%                       *

n = [-10:9]; x = [5,4,3,2,1];
xtilde = x‘ * ones(1,4); xtilde = (xtilde(:))‘;
%subplot(2,2,4);
set(gcf,‘Color‘,‘white‘);
stem(n,xtilde); title(‘Sequence in Problem 2.1d‘)
xlabel(‘n‘); ylabel(‘xtilde(n)‘);grid on;
