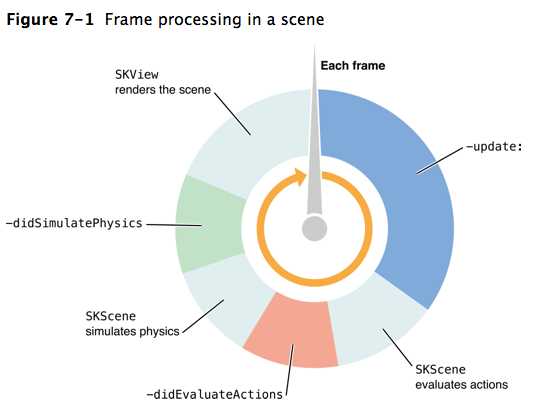

【How a Scene
Processes Frames of Animation】
In the traditional view system, the contents of a view are
rendered once and then rendered again only when the model’s contents change.
This model works very well for views, because in practice most view content is
static. Sprite Kit, on the other hand, is designed explicitly for dynamic
content. Sprite Kit continuously updates the scene contents and renders it to
ensure that animation is smooth and accurate.
The process of animating and rendering the scene is tied to the
scene object (SKScene).
【Simulating
Physics】
To use physics in your game, you need to:
- Attach physics bodies to nodes in the node tree. See “All Physics is Simulated on Physics Bodies.”
- Configure the physical properties of the physics bodies. See
“Configuring the Physical Properties of a Physics
Body.”
- Define global characteristics of the scene’s physics
simulation, such as gravity. See “Configuring the Physics
World.”
- Where necessary to support your gameplay, set the velocity of
physics bodies in the scene or apply forces or impulses to them. See “Making Physics Bodies Move.”
- Define how the physics bodies in the scene interact when they
come in contact with each other. See “Working with Collisions
and Contacts.”
- Optimize your phys
【All Physics is Simulated on
Physics Bodies】
An SKPhysicsBody object defines the shape and simulation
parameters for a physics body in the system. When the scene simulates physics,
it performs the calculations for all physics bodies connected to the scene tree.
So, you create an SKPhysicsBody object, configure its properties, and then
assign it to a node’s physicsBody property.
There are three kinds of physics bodies:
- A dynamic volume simulates a physical object
with volume and mass that can be affected by forces and collisions in the
system. Use dynamic volumes to represent items in the scene that need to move
around and collide with each other.
- A static volume is similar to a dynamic
volume, but its velocity is ignored and it is unaffected by forces or
collisions. However, because it still has volume, other objects can bounce off
it or interact with it. Use static volumes to represent items that take up
space in the scene, but that should not be moved by the simulation. For
example, you might use static volumes to represent the walls of a maze.While
it is useful to think of static and dynamic volumes as distinct entities, in
practice these are two different modes you can apply to any volume-based
physics body. This can be useful because you can selectively enable or disable
effects for a body.

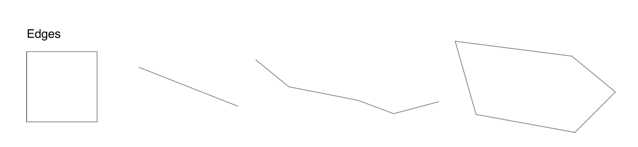

- An edge is a static volume-less body. Edges
are never moved by the simulation and their mass doesn’t matter. Edges are
used to represent negative space within a scene (such as a hollow spot inside
another entity) or an uncrossable, invisibly thin boundary. For example, edges
are frequently used to represent the boundaries of your scene.The main
difference between a edge and a volume is that an edge permits movement inside
its own boundaries, while a volume is considered a solid object. If edges are
moved through other means, they only interact with volumes, not with other
edges.
【Use a Physics Shape That
Matches the Graphical Representation】
when choosing a shape for your physics body, do not be overly precise. More
complex shapes require more work to be properly simulated. For volume-based
bodies, use the following guidelines:
- A circle is the most efficient shape.
- A path-based polygon is the least efficient shape, and the
computational work scales with the complexity of the polygon.
An edge-based body is more expensive to compute than a
volume-based body. This is because the bodies it interacts with can potentially
be on either side of an open edge or on the inside or outside of a closed shape.
Use these guidelines:
- Lines and rectangles are the most efficient edge-based
bodies.
- Edge loops and edge chains are the most expensive edge-based
bodies, and the computational work scales with the complexity of the
path
【Creating an Edge Loop Around
the Scene】

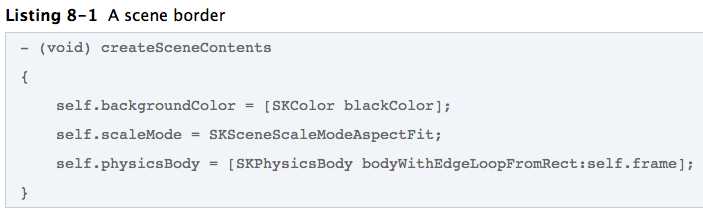

Listing 8-1 shows code that is used frequently in games that do not need to
scroll the content. In this case, the game wants physics bodies that hit the
borders of the scene to bounce back into the gameplay area.
【Creating a Circular Volume for
a Sprite】

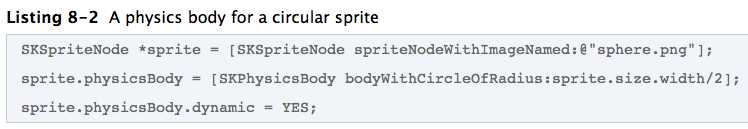

Listing 8-2 shows the code that creates the physics body for a spherical or
circular object. Because the physics body is attached to a sprite object, it
usually needs volume. In this case, the sprite image is assumed to closely
approximate a circle centered on the anchor point, so the radius of the circle
is calculated and used to create the physics body.
Advanced Scene Processing
