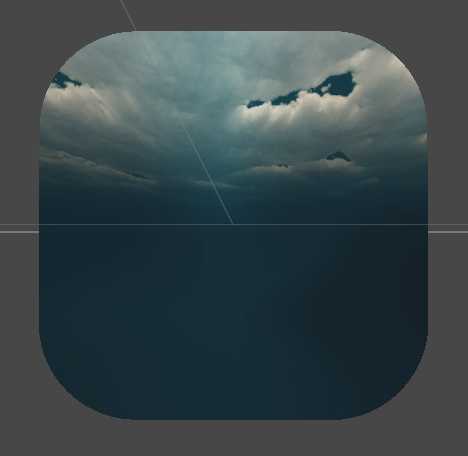

[小明学Shader]11.圆角

 1 Shader"Custom/圆角"{
 2     properties{
 3         _MainTex("Base(RGB)",2D)="white"{}
 4         _Value("Cut Value",range(0,0.25))=0.1
 5     }
 6     CGINCLUDE
 7     #include "UnityCG.cginc"
 8
 9             sampler2D _MainTex;
10             float _Value;
11
12             struct v2f {
13                 float4 pos:SV_POSITION;
14                 float2 uv:TEXCOORD;
15             };
16
17             v2f vert(appdata_full v){
18                 v2f o;
19                 o.pos=mul(UNITY_MATRIX_MVP,v.vertex);
20                 o.uv=v.texcoord;
21                 return o;
22             }
23
24             float4 frag(v2f i):COLOR{
25                 float4 c=tex2D(_MainTex,i.uv);
26
27                 //计算圆角
28                 float2 uv=i.uv-0.5;
29                 float remain=0.5-_Value;
30                 //计算当前uv是不是在四个边角
31                 float mx=step(remain,abs(uv[0]));
32                 float my=step(remain,abs(uv[1]));
33                 //计算当前uv在四个边角的相对uv
34                 float rx = fmod(uv.x, remain);
35                 float ry = fmod(uv.y, remain);
36                 //若在边角,且距离顶点的距离大于value值,则不显示
37                 float fillAlpha=1-mx*my*step(_Value*_Value,rx*rx+ry*ry);
38
39                 c.a=fillAlpha;
40
41                 return c;
42             }
43     ENDCG
44
45     subshader{
46         Tags{"Queue"="Transparent"}
47         Blend SrcAlpha OneMinusSrcAlpha
48         pass{
49             CGPROGRAM
50             #pragma vertex vert
51             #pragma fragment frag
52
53             ENDCG
54         }
55     }
56
57     FallBack "Diffuse"
58 }
