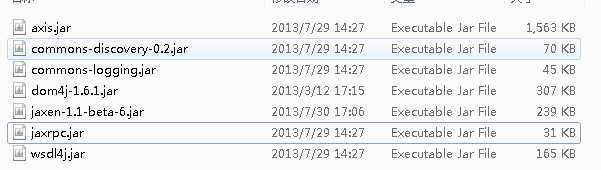

第一步：引入axis的依赖jar包
第二步：修改web.xml文件
<listener>
<listener-class>org.apache.axis.transport.http.AxisHTTPSessionListener</listener-class>
</listener>
<servlet>
<display-name>Apache-Axis Servlet</display-name>
<servlet-name>AxisServlet</servlet-name>
<servlet-class>org.apache.axis.transport.http.AxisServlet</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>AxisServlet</servlet-name>
<url-pattern>/servlet/AxisServlet</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>AxisServlet</servlet-name>
<url-pattern>/services/*</url-pattern>
</servlet-mapping>
第三步：在struts.properties文件中新增 struts.action.excludePattern=/services/.*,/servlet/AxisServlet

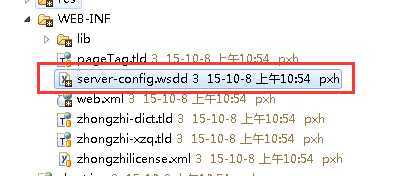

第四部：server-config.wsdd编写
server-config.wsdd代码编写：
<?xml version="1.0" encoding="UTF-8"?>
<deployment xmlns="http://xml.apache.org/axis/wsdd/" xmlns:java="http://xml.apache.org/axis/wsdd/providers/java">
<globalConfiguration>
<parameter name="sendMultiRefs" value="true"/>
<parameter name="disablePrettyXML" value="true"/>
<parameter name="adminPassword" value="admin"/>
<parameter name="attachments.Directory" value="D:\apache-tomcat-6.0.24\webapps\CHIMSWEB\WEB-INF\attachments"/>
<parameter name="dotNetSoapEncFix" value="true"/>
<parameter name="enableNamespacePrefixOptimization" value="false"/>
<parameter name="sendXMLDeclaration" value="true"/>
<parameter name="attachments.implementation" value="org.apache.axis.attachments.AttachmentsImpl"/>
<parameter name="sendXsiTypes" value="true"/>
<requestFlow>
<handler type="java:org.apache.axis.handlers.JWSHandler">
<parameter name="scope" value="session"/>
</handler>
<handler type="java:org.apache.axis.handlers.JWSHandler">
<parameter name="scope" value="request"/>
<parameter name="extension" value=".jwr"/>
</handler>
</requestFlow>
</globalConfiguration>
<handler name="URLMapper" type="java:org.apache.axis.handlers.http.URLMapper"/>
<handler name="LocalResponder" type="java:org.apache.axis.transport.local.LocalResponder"/>
<handler name="Authenticate" type="java:org.apache.axis.handlers.SimpleAuthenticationHandler"/>
<service name="chimsBoneServer" provider="java:RPC">
<parameter name="allowedMethods" value="*"/>
<parameter name="className" value="com.zhongzhi.chims.service.chimswebservice.server.ChimsBoneServer"/>
<beanMapping languageSpecificType="java:com.zhongzhi.chims.model.EvalBoneAge" qname="ns1:EvalBoneAge" xmlns:ns1="urn:EvalBoneAge"/>
</service>
<!-- 手机app调用 name="className" value="webservice接口实现类" name="allowedMethods" value="*"表示可以调用类里面的所有方法 -->
<service name="ChimsAppImplService" provider="java:RPC">
<parameter name="allowedMethods" value="*"/>
<parameter name="className" value="com.zhongzhi.chims.service.App.service.ChimsAppImplService"/>
</service>
<service name="AdminService" provider="java:MSG">
<parameter name="allowedMethods" value="AdminService"/>
<parameter name="enableRemoteAdmin" value="false"/>
<parameter name="className" value="org.apache.axis.utils.Admin"/>
<namespace>http://xml.apache.org/axis/wsdd/</namespace>
<namespace>http://xml.apache.org/axis/wsdd/</namespace>
</service>
<service name="Version" provider="java:RPC">
<parameter name="allowedMethods" value="getVersion"/>
<parameter name="className" value="org.apache.axis.Version"/>
</service>
<transport name="http">
<requestFlow>
<handler type="URLMapper"/>
<handler type="java:org.apache.axis.handlers.http.HTTPAuthHandler"/>
</requestFlow>
<parameter name="qs:list" value="org.apache.axis.transport.http.QSListHandler"/>
<parameter name="qs:wsdl" value="org.apache.axis.transport.http.QSWSDLHandler"/>
<parameter name="qs.list" value="org.apache.axis.transport.http.QSListHandler"/>
<parameter name="qs.method" value="org.apache.axis.transport.http.QSMethodHandler"/>
<parameter name="qs:method" value="org.apache.axis.transport.http.QSMethodHandler"/>
<parameter name="qs.wsdl" value="org.apache.axis.transport.http.QSWSDLHandler"/>
</transport>
<transport name="local">
<responseFlow>
<handler type="LocalResponder"/>
</responseFlow>
</transport>
</deployment>
下面就可以开始webservice接口开发了
webservice接口：
package com.zhongzhi.chims.service.App.service;
/***
*
* @author pxh</br>
*
* 2015-12-9 上午11:50:26</br>
*
* chims系统与手机APP对接服务
*/
public interface ChimsAppInterfaceService extends java.rmi.Remote{
/**
* 获取儿童信息
* @param appChildInfo
* @throws java.rmi.RemoteException
*/
public void getChildBasicInfo(java.lang.String childInfoXml) throws java.rmi.RemoteException;
/***
* 身高、体重对比
* @param childId 儿童id
* @param height 身高
* @param weight 体重
* @param boneAge 骨龄
* @return
* @throws java.rmi.RemoteException
*/
public java.lang.String sendHeightAndWeight(java.lang.String childId,java.lang.String height,java.lang.String weight,String boneAge)throws java.rmi.RemoteException;
/***
* 五年长高目标（成长跑道）
* @param childId
* @param currentHeight
* @return
* @throws java.rmi.RemoteException
*/
public java.lang.String longHighTarget(java.lang.String childId,java.lang.String currentHeight)throws java.rmi.RemoteException;
/***
* 风险评估
* @param childId
* @param riskXml
* @return
* @throws java.rmi.RemoteException
*/
public java.lang.String riskAssessment(java.lang.String childId,java.lang.String riskXml) throws java.rmi.RemoteException;
}
webservice接口实现类：
package com.zhongzhi.chims.service.App.service;
import java.rmi.RemoteException;
public class ChimsAppImplService implements ChimsAppInterfaceService {
public void getChildBasicInfo(String childInfoXml) throws RemoteException {
System.out.println(childInfoXml);
}
/***
* 儿童身高、体重对比
*/
public String sendHeightAndWeight(String childId, String height,
String weight, String boneAge) throws RemoteException {
//String str="<returns><state>0</state><heightStandard></heightStandard></returns>";
StringBuffer buffer=new StringBuffer();
buffer.append("<returns>");
buffer.append("<state>0</state>");
buffer.append("<heightStandard>84</heightStandard>");
buffer.append("<ageHeight>2</ageHeight>");
buffer.append("<boneAgeHeight>2</boneAgeHeight>");
buffer.append("<weightStandard>34</weightStandard>");
buffer.append("<ageweight>2</ageweight>");
buffer.append("<heightAndWeight>2</heightAndWeight>");
buffer.append("</returns>");
return buffer.toString();
}
/***
* 五年成长目标（成长跑道）
*/
public String longHighTarget(String childId, String currentHeight)throws RemoteException {
StringBuffer buffer=new StringBuffer();
buffer.append("<returns>");
buffer.append("<state>0</state>");
buffer.append("<forecastHeights>");
buffer.append("<forecastHeight age=\"1\" targetHeight=\"65\">-161.2</forecastHeight>");
buffer.append("<forecastHeight age=\"2\" targetHeight=\"71.4\">161.2</forecastHeight>");
buffer.append("<forecastHeight age=\"3\" targetHeight=\"90.8\">163.1</forecastHeight>");
buffer.append("<forecastHeight age=\"4\" targetHeight=\"99.1\">164.9</forecastHeight>");
buffer.append("<forecastHeight age=\"5\" targetHeight=\"107.1\">166.7</forecastHeight>");
/*buffer.append("<forecastHeight age=‘6‘ targetHeight=‘114.6‘>168.6</forecastHeight>");
buffer.append("<forecastHeight age=‘7‘ targetHeight=‘122.3‘>170.6</forecastHeight>");
buffer.append("<forecastHeight age=‘8‘ targetHeight=‘130‘>172.7</forecastHeight>");
buffer.append("<forecastHeight age=‘9‘ targetHeight=‘137.3‘>174.8</forecastHeight>");
buffer.append("<forecastHeight age=‘10‘ targetHeight=‘144.4‘>176.8</forecastHeight>");
buffer.append("<forecastHeight age=‘11‘ targetHeight=‘151.3‘>178.7</forecastHeight>");
buffer.append("<forecastHeight age=‘12‘ targetHeight=‘158.9‘>180.5</forecastHeight>");
buffer.append("<forecastHeight age=‘13‘ targetHeight=‘166.2‘>182.3</forecastHeight>");
buffer.append("<forecastHeight age=‘14‘ targetHeight=‘173.6‘>184.2</forecastHeight>");
buffer.append("<forecastHeight age=‘15‘ targetHeight=‘181.5‘>+184.2</forecastHeight>");*/
buffer.append("</forecastHeights></returns>");
return buffer.toString();
}
/***
* 风险评估
*/
public String riskAssessment(String childId, String riskXml)throws RemoteException {
StringBuffer buffer=new StringBuffer();
buffer.append("<returns>");
buffer.append("<state>0</state>");
buffer.append("<shortRisk score=\"60\">6</shortRisk>");
buffer.append("<obesityRisk score=\"40\">4</obesityRisk>");
buffer.append("<precociousRisk score=\"60\">6</precociousRisk>");
buffer.append("<diseaseRisk score=\"100\">10</diseaseRisk>");
buffer.append("</returns>");
return buffer.toString();
}
}
