InstallShield 2008

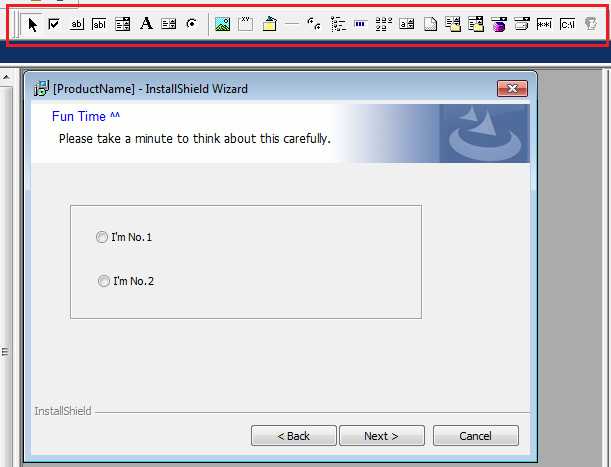

Screen Layout is designed as below. Use toolbox to edit screen layout.
1> Set properties for each control:
|
RadioButtonGroup1 |
Rank1 (RadioButton) |
Rank2 (RadioButton) |
|
[Property]: Rank |
[Text]: I’m No.1 |
[Text]: I’m No.2 |
|
|
[Order]: 1 |
[Order]: 2 |
|
|
[Value]: No1 |
[Value]: No2 |

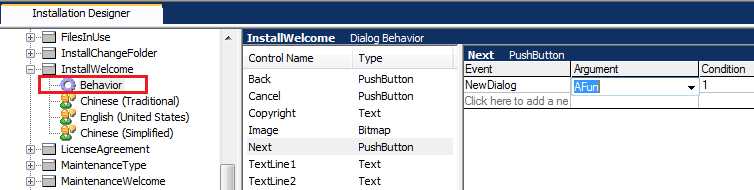

2> Insert AFun dialog between InstallWelcom and LicenseAgreement.
3> Set default checked radio button.
Browse to Direct Editor, go to Property Table, find RadioButtonGroup1’s Property name: Rank
Set its Value as No2, same as Rank2 (RadioButton)’s Value.

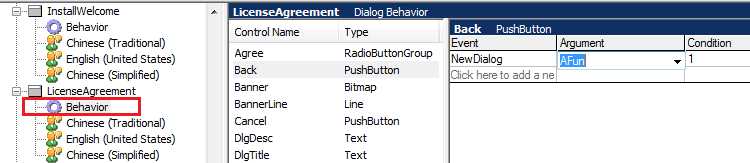

4> Set associated actions between radio button and Next button.
If “I’m No.1” is checked, Enable Next>
If “I’m No.2” is checked, Disable Next>

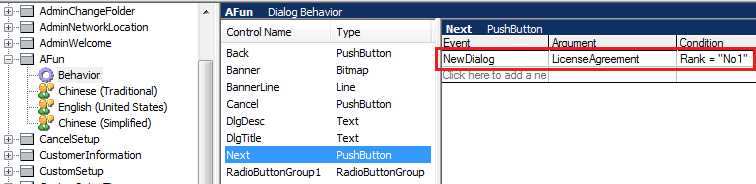

Go to ControlCondition Table, set Action for each Condition.
5> Build project and run.
