1.模式定义：
给定一个语言，定义它的文法的一种表示，并定义一个解释器，这个解释器使用该表示来解释语言中的句子。
Given a language,define a representation for its grammar along with an interpreter that uses representation to interpret sentences in the language.
2.结构：
AbstractExpression(抽象表达式)：在抽象表达式声明了抽象的解释操作，它是所有终结表达式和非终结表达式的公共父类。
TerminalExpression(终结符表达式):终结符表达式是抽象表达式的子类，它实现了与文法中的终结符相关联的解释操作，在句子中的每一个终结符都是该类的一个实例。通常，在一个解释器模式中只有少数几个终结符表达式类，它们的实例可以通过非终结符表达式组成较为复杂的句子。
NonterminalExpression(非终结符表达式):它实现了文法中非终结符的解释操作，由于在非终结符表达式中可以包含终结符表达式，也可以继续包含非终结符表达式，因此其解释操作一般通过递归的方式来完成。
Context(环境类):又称上下文类，它用于存储解释器之外的一些全局信息，通常零食存储了需要解释的语句。
3.实现（抽象代码）：
//抽象表达式类
abstract class AbstractExpression{
public abstract void Interprete(Context ctx);
}
//终结符表达式类
class TerminalExpression:AbstractExpression
{
public override void Interpret(Context ctx){...}
}
//非终结符表达式类
class NonterminalExpression:AbstractExpression
{
private AbstractExpression left;
private AbstractExpression right;
public NonterminalExpression(AbstractExpression left,AbstractExpression right){
this.left=left;
this.right=right;
}
public override void Interpret(Context ctx){
//递归调用每一个组成部分的Interpret()方法
//在递归的同时指定组成部分的连接方式，即非终结符的功能。
}
}
//环境类
using System.Collection;
class Context{
private Hashtable ht=new Hashtable();
//给集合对象设值
public void Assign(string key,string value){
ht.Add(key,value);
}
//获取存储在集合对象中的值
public string Lookup(string key){
return (string)ht[key];
}
}
环境类Context的对象通常作为参数被传递到所有表达式的解释方法Interpret()中，可以在环境类对象中存储和访问表达式解释器的状态，向表达式解释器提供一些全局的，公共的数据，此外，还可以在环境类中增加一些所有表达式解释器都共有的功能，以减轻解释器的职责。当系统无须提供全局公共信息时可以省略环境类，根据实际情况决定是否需要环境类。
4.案例代码:
//抽象表达式角色：
using System; using System.Collections.Generic; using System.Linq; using System.Text; using System.Threading.Tasks; namespace InterPretreSample { abstract class AbstractNode { public abstract string Interpret(); } }
//And节点类，充当非终结符表达式角色：
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace InterPretreSample
{
class AndNode:AbstractNode
{
private AbstractNode left;
private AbstractNode right;
public AndNode(AbstractNode left,AbstractNode right) {
this.left = left;
this.right = right;
}
public override string Interpret()
{
return left.Interpret() + "再" + right.Interpret();
//throw new NotImplementedException();
}
}
}
//简单句子节点类，充当非终结符表达式角色：
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace InterPretreSample
{
class SentenceNode:AbstractNode
{
private AbstractNode direction;
private AbstractNode action;
private AbstractNode distance;
public SentenceNode(AbstractNode direction,AbstractNode action,AbstractNode distance) {
this.direction = direction;
this.action = action;
this.distance = distance;
}
public override string Interpret()
{
return direction.Interpret() + action.Interpret() + distance.Interpret();
//throw new NotImplementedException();
}
}
}
//方向节点类，充当终结符表达式角色
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace InterPretreSample
{
class DirectionNode:AbstractNode
{
private string direction;
public DirectionNode(string direction) {
this.direction = direction;
}
public override string Interpret()
{
if (direction=="up") {
return "向上";
}
else if (direction=="down") {
return "向下";
}
else if (direction=="left") {
return "向左";
}
else if (direction=="right")
{
return "right";
}
else {
return "无效指令";
}
//throw new NotImplementedException();
}
}
}
//动作节点类，充当终结符表达式角色类：
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace InterPretreSample
{
class ActionNode:AbstractNode
{
private string action;
public ActionNode(string action) {
this.action = action;
}
public override string Interpret()
{
if (action=="move") {
return "移动";
}
else if (action=="run")
{
return "快速移动";
}
else {
return "无效指令";
}
//throw new NotImplementedException();
}
}
}
//距离节点类，充当终结符表达式角色
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace InterPretreSample
{
class DistanceNode:AbstractNode
{
private string distance;
public DistanceNode(string distance) {
this.distance = distance;
}
public override string Interpret()
{
return this.distance;
//throw new NotImplementedException();
}
}
}
//指令处理类：
using System; using System.Collections.Generic; using System.Linq; using System.Text; using System.Threading.Tasks; namespace InterPretreSample { class InstructionHandler { private AbstractNode node; public void Handle(string instruction) { AbstractNode left = null, right = null; //Stack stack = new Stack(); AbstractNode direction = null, action = null, distance = null; Stack<AbstractNode> stack = new Stack<AbstractNode>(); string[] words = instruction.Split(‘ ‘); for (int i = 0; i < words.Length; i++) { if (words[i].Equals("end")) { left = (AbstractNode)stack.Pop(); string word1 = words[i]; direction = new DirectionNode(word1); string word2 = words[i]; action = new ActionNode(word2); string word3 = words[i]; distance = new DistanceNode(word3); right = new SentenceNode(direction, action, distance); stack.Push(new AndNode(left, right)); } else { string word1 = words[i]; direction = new DirectionNode(word1); string word2 = words[i]; action = new ActionNode(word2); string word3 = words[i]; distance = new DistanceNode(word3); left = new SentenceNode(direction, action, distance); stack.Push(left); } } this.node = (AbstractNode)stack.Pop(); } public string Output() { string result = node.Interpret(); return result; } } }
//客户端测试类：
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace InterPretreSample
{
class InstructionHandler
{
private AbstractNode node;
public void Handle(string instruction)
{
AbstractNode left = null, right = null;
//Stack stack = new Stack();
AbstractNode direction = null, action = null, distance = null;
Stack<AbstractNode> stack = new Stack<AbstractNode>();
string[] words = instruction.Split(‘ ‘);
for (int i = 0; i < words.Length; i++)
{
if (words[i].Equals("end"))
{
left = (AbstractNode)stack.Pop();
string word1 = words[i];
direction = new DirectionNode(word1);
string word2 = words[i];
action = new ActionNode(word2);
string word3 = words[i];
distance = new DistanceNode(word3);
right = new SentenceNode(direction, action, distance);
stack.Push(new AndNode(left, right));
}
else
{
string word1 = words[i];
direction = new DirectionNode(word1);
string word2 = words[i];
action = new ActionNode(word2);
string word3 = words[i];
distance = new DistanceNode(word3);
left = new SentenceNode(direction, action, distance);
stack.Push(left);
}
}
this.node = (AbstractNode)stack.Pop();
}
public string Output()
{
string result = node.Interpret();
return result;
}
}
}

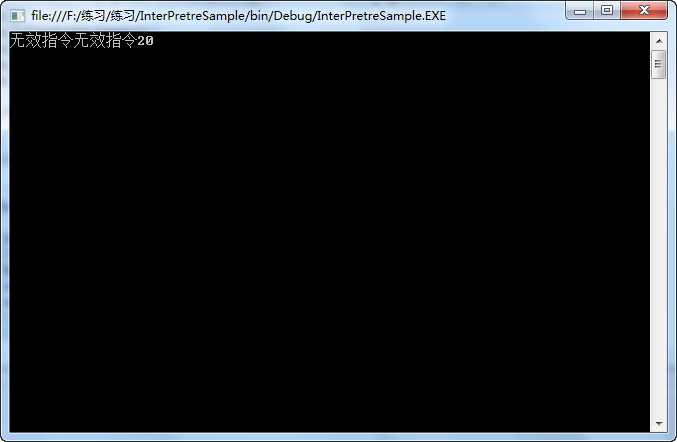

运行截图：
醉了，结果和书上的不一样，代码好像没有什么不一样，希望路过的大侠指点一下。。
