[转载] 基于zookeeper、连接池、Failover/LoadBalance等改造Thrift 服务化

转载自http://blog.csdn.net/zhu_tianwei/article/details/44115667

http://blog.csdn.net/column/details/slimina-thrift.html

对于Thrift服务化的改造，主要是客户端，可以从如下几个方面进行：

1.服务端的服务注册，客户端自动发现，无需手工修改配置，这里我们使用zookeeper，但由于zookeeper本身提供的客户端使用较为复杂，因此采用curator-recipes工具类进行处理服务的注册与发现。

2.客户端使用连接池对服务调用进行管理，提升性能，这里我们使用Apache Commons项目commons-pool，可以大大减少代码的复杂度。

3.关于Failover/LoadBalance，由于zookeeper的watcher，当服务端不可用是及时通知客户端，并移除不可用的服务节点，而LoadBalance有很多算法，这里我们采用随机加权方式，也是常有的负载算法，至于其他的算法介绍参考:常见的负载均衡的基本算法。

4.使thrift服务的注册和发现可以基于spring配置,可以提供很多的便利。

5.其他的改造如：

1）通过动态代理实现client和server端的交互细节透明化，让用户只需通过服务方提供的接口进行访问

2）Thrift通过两种方式调用服务Client和Iface

[java] view plaincopyprint?



1. // *) Client API 调用
2. (EchoService.Client)client.echo("hello lilei");  ---(1)
3. // *) Service 接口 调用
4. (EchoService.Iface)service.echo("hello lilei");  ---(2)

Client API的方式, 不推荐, 我们推荐Service接口的方式(服务化)。

下面我们来一一实现：

一、pom.xml引入依赖jar包

[html] view plaincopyprint?



1. <dependency>
2.             <groupId>org.apache.thrift</groupId>
3.             <artifactId>libthrift</artifactId>
4.             <version>0.9.2</version>
5.         </dependency>
6.         <dependency>
7.             <groupId>commons-pool</groupId>
8.             <artifactId>commons-pool</artifactId>
9.             <version>1.6</version>
10.         </dependency>
11.         <dependency>
12.             <groupId>org.springframework</groupId>
13.             <artifactId>spring-context</artifactId>
14.             <version>4.0.9.RELEASE</version>
15.         </dependency>
16.
17.         <dependency>
18.             <groupId>org.apache.zookeeper</groupId>
19.             <artifactId>zookeeper</artifactId>
20.             <version>3.4.6</version>
21.         </dependency>
22.         <dependency>
23.             <groupId>org.apache.curator</groupId>
24.             <artifactId>curator-recipes</artifactId>
25.             <version>2.7.1</version>
26.         </dependency>

二、使用zookeeper管理服务节点配置

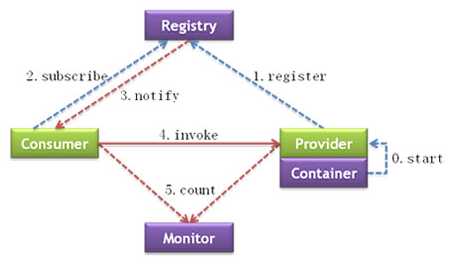

RPC服务往平台化的方向发展, 会屏蔽掉更多的服务细节(服务的IP地址集群, 集群的扩容和迁移), 只暴露服务接口. 这部分的演化, 使得server端和client端完全的解耦合. 两者的交互通过ConfigServer(MetaServer)的中介角色来搭线。

注: 该图源自dubbo的官网
这边借助Zookeeper来扮演该角色, server扮演发布者的角色, 而client扮演订阅者的角色.

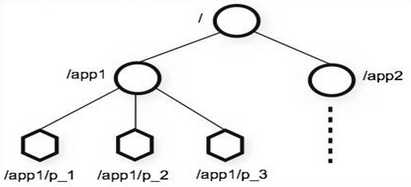

Zookeeper是分布式应用协作服务. 它实现了paxos的一致性算法, 在命名管理/配置推送/数据同步/主从切换方面扮演重要的角色。 其数据组织类似文件系统的目录结构:

每个节点被称为znode, 为znode节点依据其特性, 又可以分为如下类型:
　　1). PERSISTENT: 永久节点
　　2). EPHEMERAL: 临时节点, 会随session(client disconnect)的消失而消失
　　3). PERSISTENT_SEQUENTIAL: 永久节点, 其节点的名字编号是单调递增的
　　4). EPHEMERAL_SEQUENTIAL: 临时节点, 其节点的名字编号是单调递增的
　　注: 临时节点不能成为父节点
　　Watcher观察模式, client可以注册对节点的状态/内容变更的事件回调机制. 其Event事件的两类属性需要关注下:
　　1). KeeperState: Disconnected,SyncConnected,Expired
　　2). EventType: None,NodeCreated,NodeDeleted,NodeDataChanged,NodeChildrenChanged
RPC服务端:
　　作为具体业务服务的RPC服务发布方, 对其自身的服务描述由以下元素构成.
　　1). namespace: 命名空间，来区分不同应用
　　2). service: 服务接口, 采用发布方的类全名来表示
　　3). version: 版本号
　　借鉴了Maven的GAV坐标系, 三维坐标系更符合服务平台化的大环境.
　　*) 数据模型的设计
　　具体RPC服务的注册路径为: /rpc/{namespace}/{service}/{version}, 该路径上的节点都是永久节点
　　RPC服务集群节点的注册路径为: /rpc/{namespace}/{service}/{version}/{ip:port:weight}, 末尾的节点是临时节点.

1.定义Zookeeper的客户端的管理

ZookeeperFactory.java

[java] view plaincopyprint?



1. package cn.slimsmart.thrift.rpc.zookeeper;
2.
3. import org.apache.curator.framework.CuratorFramework;
4. import org.apache.curator.framework.CuratorFrameworkFactory;
5. import org.apache.curator.retry.ExponentialBackoffRetry;
6. import org.springframework.beans.factory.FactoryBean;
7. import org.springframework.util.StringUtils;
8.
9. /**
10.  * 获取zookeeper客户端链接
11.  */
12. public class ZookeeperFactory implements FactoryBean<CuratorFramework> {
13.
14.     private String zkHosts;
15.     // session超时
16.     private int sessionTimeout = 30000;
17.     private int connectionTimeout = 30000;
18.
19.     // 共享一个zk链接
20.     private boolean singleton = true;
21.
22.     // 全局path前缀,常用来区分不同的应用
23.     private String namespace;
24.
25.     private final static String ROOT = "rpc";
26.
27.     private CuratorFramework zkClient;
28.
29.     public void setZkHosts(String zkHosts) {
30.         this.zkHosts = zkHosts;
31.     }
32.
33.     public void setSessionTimeout(int sessionTimeout) {
34.         this.sessionTimeout = sessionTimeout;
35.     }
36.
37.     public void setConnectionTimeout(int connectionTimeout) {
38.         this.connectionTimeout = connectionTimeout;
39.     }
40.
41.     public void setSingleton(boolean singleton) {
42.         this.singleton = singleton;
43.     }
44.
45.     public void setNamespace(String namespace) {
46.         this.namespace = namespace;
47.     }
48.
49.     public void setZkClient(CuratorFramework zkClient) {
50.         this.zkClient = zkClient;
51.     }
52.
53.     @Override
54.     public CuratorFramework getObject() throws Exception {
55.         if (singleton) {
56.             if (zkClient == null) {
57.                 zkClient = create();
58.                 zkClient.start();
59.             }
60.             return zkClient;
61.         }
62.         return create();
63.     }
64.
65.     @Override
66.     public Class<?> getObjectType() {
67.         return CuratorFramework.class;
68.     }
69.
70.     @Override
71.     public boolean isSingleton() {
72.         return singleton;
73.     }
74.
75.     public CuratorFramework create() throws Exception {
76.         if (StringUtils.isEmpty(namespace)) {
77.             namespace = ROOT;
78.         } else {
79.             namespace = ROOT +"/"+ namespace;
80.         }
81.         return create(zkHosts, sessionTimeout, connectionTimeout, namespace);
82.     }
83.
84.     public static CuratorFramework create(String connectString, int sessionTimeout, int connectionTimeout, String namespace) {
85.         CuratorFrameworkFactory.Builder builder = CuratorFrameworkFactory.builder();
86.         return builder.connectString(connectString).sessionTimeoutMs(sessionTimeout).connectionTimeoutMs(30000)
87.                 .canBeReadOnly(true).namespace(namespace).retryPolicy(new ExponentialBackoffRetry(1000, Integer.MAX_VALUE))
88.                 .defaultData(null).build();
89.     }
90.
91.     public void close() {
92.         if (zkClient != null) {
93.             zkClient.close();
94.         }
95.     }
96. }

2.服务端注册服务

由于服务端配置需要获取本机的IP地址，因此定义IP获取接口

ThriftServerIpResolve.java

[java] view plaincopyprint?



1. package cn.slimsmart.thrift.rpc.zookeeper;
2.
3. /**
4.  *
5.  * 解析thrift-server端IP地址，用于注册服务
6.  * 1) 可以从一个物理机器或者虚机的特殊文件中解析
7.  * 2) 可以获取指定网卡序号的Ip
8.  * 3) 其他
9.  */
10. public interface ThriftServerIpResolve {
11.
12.     String getServerIp() throws Exception;
13.
14.     void reset();
15.
16.     //当IP变更时,将会调用reset方法
17.     static interface IpRestCalllBack{
18.         public void rest(String newIp);
19.     }
20. }

可以对该接口做不通的实现，下面我们基于网卡获取IP地址，也可以通过配置serverIp
ThriftServerIpLocalNetworkResolve.java

[java] view plaincopyprint?



1. package cn.slimsmart.thrift.rpc.zookeeper;
2.
3. import java.net.Inet6Address;
4. import java.net.InetAddress;
5. import java.net.NetworkInterface;
6. import java.net.SocketException;
7. import java.util.Enumeration;
8.
9. import org.slf4j.Logger;
10. import org.slf4j.LoggerFactory;
11.
12. /**
13.  * 解析网卡Ip
14.  *
15.  */
16. public class ThriftServerIpLocalNetworkResolve implements ThriftServerIpResolve {
17.
18.     private Logger logger = LoggerFactory.getLogger(getClass());
19.
20.     //缓存
21.     private String serverIp;
22.
23.     public void setServerIp(String serverIp) {
24.         this.serverIp = serverIp;
25.     }
26.
27.     @Override
28.     public String getServerIp() {
29.         if (serverIp != null) {
30.             return serverIp;
31.         }
32.         // 一个主机有多个网络接口
33.         try {
34.             Enumeration<NetworkInterface> netInterfaces = NetworkInterface.getNetworkInterfaces();
35.             while (netInterfaces.hasMoreElements()) {
36.                 NetworkInterface netInterface = netInterfaces.nextElement();
37.                 // 每个网络接口,都会有多个"网络地址",比如一定会有lookback地址,会有siteLocal地址等.以及IPV4或者IPV6 .
38.                 Enumeration<InetAddress> addresses = netInterface.getInetAddresses();
39.                 while (addresses.hasMoreElements()) {
40.                     InetAddress address = addresses.nextElement();
41.                     if(address instanceof Inet6Address){
42.                         continue;
43.                     }
44.                     if (address.isSiteLocalAddress() && !address.isLoopbackAddress()) {
45.                         serverIp = address.getHostAddress();
46.                         logger.info("resolve server ip :"+ serverIp);
47.                         continue;
48.                     }
49.                 }
50.             }
51.         } catch (SocketException e) {
52.             e.printStackTrace();
53.         }
54.         return serverIp;
55.     }
56.
57.     @Override
58.     public void reset() {
59.         serverIp = null;
60.     }
61. }

接下来我们定义发布服务接口，并实现将服务信息（服务接口、版本号，IP、port、weight）发布到zookeeper中。
ThriftServerAddressRegister.java

[java] view plaincopyprint?



1. package cn.slimsmart.thrift.rpc.zookeeper;
2.
3. /**
4.  * 发布服务地址及端口到服务注册中心，这里是zookeeper服务器
5.  */
6. public interface ThriftServerAddressRegister {
7.     /**
8.      * 发布服务接口
9.      * @param service 服务接口名称，一个产品中不能重复
10.      * @param version 服务接口的版本号，默认1.0.0
11.      * @param address 服务发布的地址和端口
12.      */
13.     void register(String service,String version,String address);
14. }

实现：ThriftServerAddressRegisterZookeeper.java

[java] view plaincopyprint?



1. package cn.slimsmart.thrift.rpc.zookeeper;
2.
3. import java.io.UnsupportedEncodingException;
4.
5. import org.apache.curator.framework.CuratorFramework;
6. import org.apache.curator.framework.imps.CuratorFrameworkState;
7. import org.apache.zookeeper.CreateMode;
8. import org.slf4j.Logger;
9. import org.slf4j.LoggerFactory;
10. import org.springframework.util.StringUtils;
11.
12. import cn.slimsmart.thrift.rpc.ThriftException;
13.
14. /**
15.  *  注册服务列表到Zookeeper
16.  */
17. public class ThriftServerAddressRegisterZookeeper implements ThriftServerAddressRegister{
18.
19.     private Logger logger = LoggerFactory.getLogger(getClass());
20.
21.     private CuratorFramework zkClient;
22.
23.     public ThriftServerAddressRegisterZookeeper(){}
24.
25.     public ThriftServerAddressRegisterZookeeper(CuratorFramework zkClient){
26.         this.zkClient = zkClient;
27.     }
28.
29.     public void setZkClient(CuratorFramework zkClient) {
30.         this.zkClient = zkClient;
31.     }
32.
33.     @Override
34.     public void register(String service, String version, String address) {
35.         if(zkClient.getState() == CuratorFrameworkState.LATENT){
36.             zkClient.start();
37.         }
38.         if(StringUtils.isEmpty(version)){
39.             version="1.0.0";
40.         }
41.         //临时节点
42.         try {
43.             zkClient.create()
44.                 .creatingParentsIfNeeded()
45.                 .withMode(CreateMode.EPHEMERAL)
46.                 .forPath("/"+service+"/"+version+"/"+address);
47.         } catch (UnsupportedEncodingException e) {
48.             logger.error("register service address to zookeeper exception:{}",e);
49.             throw new ThriftException("register service address to zookeeper exception: address UnsupportedEncodingException", e);
50.         } catch (Exception e) {
51.             logger.error("register service address to zookeeper exception:{}",e);
52.             throw new ThriftException("register service address to zookeeper exception:{}", e);
53.         }
54.     }
55.
56.     public void close(){
57.         zkClient.close();
58.     }
59. }

3.客户端发现服务

定义获取服务地址接口

ThriftServerAddressProvider.java

[java] view plaincopyprint?



1. package cn.slimsmart.thrift.rpc.zookeeper;
2.
3. import java.net.InetSocketAddress;
4. import java.util.List;
5.
6. /**
7.  * thrift server-service地址提供者,以便构建客户端连接池
8.  */
9. public interface ThriftServerAddressProvider {
10.
11.     //获取服务名称
12.     String getService();
13.
14.     /**
15.      * 获取所有服务端地址
16.      * @return
17.      */
18.     List<InetSocketAddress> findServerAddressList();
19.
20.     /**
21.      * 选取一个合适的address,可以随机获取等‘
22.      * 内部可以使用合适的算法.
23.      * @return
24.      */
25.     InetSocketAddress selector();
26.
27.     void close();
28. }

基于zookeeper服务地址自动发现实现：ThriftServerAddressProviderZookeeper.java

[java] view plaincopyprint?



1. package cn.slimsmart.thrift.rpc.zookeeper;
2.
3. import java.net.InetSocketAddress;
4. import java.util.ArrayList;
5. import java.util.Collections;
6. import java.util.HashSet;
7. import java.util.LinkedList;
8. import java.util.List;
9. import java.util.Queue;
10. import java.util.Set;
11.
12. import org.apache.curator.framework.CuratorFramework;
13. import org.apache.curator.framework.imps.CuratorFrameworkState;
14. import org.apache.curator.framework.recipes.cache.ChildData;
15. import org.apache.curator.framework.recipes.cache.PathChildrenCache;
16. import org.apache.curator.framework.recipes.cache.PathChildrenCache.StartMode;
17. import org.apache.curator.framework.recipes.cache.PathChildrenCacheEvent;
18. import org.apache.curator.framework.recipes.cache.PathChildrenCacheListener;
19. import org.slf4j.Logger;
20. import org.slf4j.LoggerFactory;
21. import org.springframework.beans.factory.InitializingBean;
22.
23. /**
24.  * 使用zookeeper作为"config"中心,使用apache-curator方法库来简化zookeeper开发
25.  */
26. public class ThriftServerAddressProviderZookeeper implements ThriftServerAddressProvider, InitializingBean {
27.
28.     private Logger logger = LoggerFactory.getLogger(getClass());
29.
30.     // 注册服务
31.     private String service;
32.     // 服务版本号
33.     private String version = "1.0.0";
34.
35.     private PathChildrenCache cachedPath;
36.
37.     private CuratorFramework zkClient;
38.
39.     // 用来保存当前provider所接触过的地址记录
40.     // 当zookeeper集群故障时,可以使用trace中地址,作为"备份"
41.     private Set<String> trace = new HashSet<String>();
42.
43.     private final List<InetSocketAddress> container = new ArrayList<InetSocketAddress>();
44.
45.     private Queue<InetSocketAddress> inner = new LinkedList<InetSocketAddress>();
46.
47.     private Object lock = new Object();
48.
49.     // 默认权重
50.     private static final Integer DEFAULT_WEIGHT = 1;
51.
52.     public void setService(String service) {
53.         this.service = service;
54.     }
55.
56.     public void setVersion(String version) {
57.         this.version = version;
58.     }
59.
60.     public ThriftServerAddressProviderZookeeper() {
61.     }
62.
63.     public ThriftServerAddressProviderZookeeper(CuratorFramework zkClient) {
64.         this.zkClient = zkClient;
65.     }
66.
67.     public void setZkClient(CuratorFramework zkClient) {
68.         this.zkClient = zkClient;
69.     }
70.
71.     @Override
72.     public void afterPropertiesSet() throws Exception {
73.         // 如果zk尚未启动,则启动
74.         if (zkClient.getState() == CuratorFrameworkState.LATENT) {
75.             zkClient.start();
76.         }
77.         buildPathChildrenCache(zkClient, getServicePath(), true);
78.         cachedPath.start(StartMode.POST_INITIALIZED_EVENT);
79.     }
80.
81.     private String getServicePath(){
82.         return "/" + service + "/" + version;
83.     }
84.     private void buildPathChildrenCache(final CuratorFramework client, String path, Boolean cacheData) throws Exception {
85.         cachedPath = new PathChildrenCache(client, path, cacheData);
86.         cachedPath.getListenable().addListener(new PathChildrenCacheListener() {
87.             @Override
88.             public void childEvent(CuratorFramework client, PathChildrenCacheEvent event) throws Exception {
89.                 PathChildrenCacheEvent.Type eventType = event.getType();
90.                 switch (eventType) {
91.                 case CONNECTION_RECONNECTED:
92.                     logger.info("Connection is reconection.");
93.                     break;
94.                 case CONNECTION_SUSPENDED:
95.                     logger.info("Connection is suspended.");
96.                     break;
97.                 case CONNECTION_LOST:
98.                     logger.warn("Connection error,waiting...");
99.                     return;
100.                 default:
101.                     //
102.                 }
103.                 // 任何节点的时机数据变动,都会rebuild,此处为一个"简单的"做法.
104.                 cachedPath.rebuild();
105.                 rebuild();
106.             }
107.
108.             protected void rebuild() throws Exception {
109.                 List<ChildData> children = cachedPath.getCurrentData();
110.                 if (children == null || children.isEmpty()) {
111.                     // 有可能所有的thrift server都与zookeeper断开了链接
112.                     // 但是,有可能,thrift client与thrift server之间的网络是良好的
113.                     // 因此此处是否需要清空container,是需要多方面考虑的.
114.                     container.clear();
115.                     logger.error("thrift server-cluster error....");
116.                     return;
117.                 }
118.                 List<InetSocketAddress> current = new ArrayList<InetSocketAddress>();
119.                 String path = null;
120.                 for (ChildData data : children) {
121.                     path = data.getPath();
122.                     logger.debug("get path:"+path);
123.                     path = path.substring(getServicePath().length()+1);
124.                     logger.debug("get serviceAddress:"+path);
125.                     String address = new String(path.getBytes(), "utf-8");
126.                     current.addAll(transfer(address));
127.                     trace.add(address);
128.                 }
129.                 Collections.shuffle(current);
130.                 synchronized (lock) {
131.                     container.clear();
132.                     container.addAll(current);
133.                     inner.clear();
134.                     inner.addAll(current);
135.
136.                 }
137.             }
138.         });
139.     }
140.
141.     private List<InetSocketAddress> transfer(String address) {
142.         String[] hostname = address.split(":");
143.         Integer weight = DEFAULT_WEIGHT;
144.         if (hostname.length == 3) {
145.             weight = Integer.valueOf(hostname[2]);
146.         }
147.         String ip = hostname[0];
148.         Integer port = Integer.valueOf(hostname[1]);
149.         List<InetSocketAddress> result = new ArrayList<InetSocketAddress>();
150.         // 根据优先级，将ip：port添加多次到地址集中，然后随机取地址实现负载
151.         for (int i = 0; i < weight; i++) {
152.             result.add(new InetSocketAddress(ip, port));
153.         }
154.         return result;
155.     }
156.
157.     @Override
158.     public List<InetSocketAddress> findServerAddressList() {
159.         return Collections.unmodifiableList(container);
160.     }
161.
162.     @Override
163.     public synchronized InetSocketAddress selector() {
164.         if (inner.isEmpty()) {
165.             if (!container.isEmpty()) {
166.                 inner.addAll(container);
167.             } else if (!trace.isEmpty()) {
168.                 synchronized (lock) {
169.                     for (String hostname : trace) {
170.                         container.addAll(transfer(hostname));
171.                     }
172.                     Collections.shuffle(container);
173.                     inner.addAll(container);
174.                 }
175.             }
176.         }
177.         return inner.poll();
178.     }
179.
180.     @Override
181.     public void close() {
182.         try {
183.             cachedPath.close();
184.             zkClient.close();
185.         } catch (Exception e) {
186.         }
187.     }
188.
189.     @Override
190.     public String getService() {
191.         return service;
192.     }
193.
194. }

对此接口还做了一种实现，通过配置获取服务地址，参考附件：FixedAddressProvider.java

三、服务端服务注册实现

ThriftServiceServerFactory.java

[java] view plaincopyprint?



1. package cn.slimsmart.thrift.rpc;
2.
3. import java.lang.instrument.IllegalClassFormatException;
4. import java.lang.reflect.Constructor;
5.
6. import org.apache.thrift.TProcessor;
7. import org.apache.thrift.TProcessorFactory;
8. import org.apache.thrift.protocol.TBinaryProtocol;
9. import org.apache.thrift.server.TServer;
10. import org.apache.thrift.server.TThreadedSelectorServer;
11. import org.apache.thrift.transport.TFramedTransport;
12. import org.apache.thrift.transport.TNonblockingServerSocket;
13. import org.springframework.beans.factory.InitializingBean;
14. import org.springframework.util.StringUtils;
15.
16. import cn.slimsmart.thrift.rpc.zookeeper.ThriftServerAddressRegister;
17. import cn.slimsmart.thrift.rpc.zookeeper.ThriftServerIpLocalNetworkResolve;
18. import cn.slimsmart.thrift.rpc.zookeeper.ThriftServerIpResolve;
19.
20. /**
21.  * 服务端注册服务工厂
22.  */
23. public class ThriftServiceServerFactory implements InitializingBean {
24.     // 服务注册本机端口
25.     private Integer port = 8299;
26.     // 优先级
27.     private Integer weight = 1;// default
28.     // 服务实现类
29.     private Object service;// serice实现类
30.     //服务版本号
31.     private String version;
32.     // 解析本机IP
33.     private ThriftServerIpResolve thriftServerIpResolve;
34.     //服务注册
35.     private ThriftServerAddressRegister thriftServerAddressRegister;
36.
37.     private ServerThread serverThread;
38.
39.     public void setPort(Integer port) {
40.         this.port = port;
41.     }
42.
43.     public void setWeight(Integer weight) {
44.         this.weight = weight;
45.     }
46.
47.     public void setService(Object service) {
48.         this.service = service;
49.     }
50.
51.     public void setVersion(String version) {
52.         this.version = version;
53.     }
54.
55.     public void setThriftServerIpResolve(ThriftServerIpResolve thriftServerIpResolve) {
56.         this.thriftServerIpResolve = thriftServerIpResolve;
57.     }
58.
59.     public void setThriftServerAddressRegister(ThriftServerAddressRegister thriftServerAddressRegister) {
60.         this.thriftServerAddressRegister = thriftServerAddressRegister;
61.     }
62.
63.     @Override
64.     public void afterPropertiesSet() throws Exception {
65.         if (thriftServerIpResolve == null) {
66.             thriftServerIpResolve = new ThriftServerIpLocalNetworkResolve();
67.         }
68.         String serverIP = thriftServerIpResolve.getServerIp();
69.         if (StringUtils.isEmpty(serverIP)) {
70.             throw new ThriftException("cant find server ip...");
71.         }
72.
73.         String hostname = serverIP + ":" + port + ":" + weight;
74.         Class<?> serviceClass = service.getClass();
75.         // 获取实现类接口
76.         Class<?>[] interfaces = serviceClass.getInterfaces();
77.         if (interfaces.length == 0) {
78.             throw new IllegalClassFormatException("service-class should implements Iface");
79.         }
80.         // reflect,load "Processor";
81.         TProcessor processor = null;
82.         String serviceName = null;
83.         for (Class<?> clazz : interfaces) {
84.             String cname = clazz.getSimpleName();
85.             if (!cname.equals("Iface")) {
86.                 continue;
87.             }
88.             serviceName = clazz.getEnclosingClass().getName();
89.             String pname = serviceName + "$Processor";
90.             try {
91.                 ClassLoader classLoader = Thread.currentThread().getContextClassLoader();
92.                 Class<?> pclass = classLoader.loadClass(pname);
93.                 if (!TProcessor.class.isAssignableFrom(pclass)) {
94.                     continue;
95.                 }
96.                 Constructor<?> constructor = pclass.getConstructor(clazz);
97.                 processor = (TProcessor) constructor.newInstance(service);
98.                 break;
99.             } catch (Exception e) {
100.                 //
101.             }
102.         }
103.         if (processor == null) {
104.             throw new IllegalClassFormatException("service-class should implements Iface");
105.         }
106.         //需要单独的线程,因为serve方法是阻塞的.
107.         serverThread = new ServerThread(processor, port);
108.         serverThread.start();
109.         // 注册服务
110.         if (thriftServerAddressRegister != null) {
111.             thriftServerAddressRegister.register(serviceName, version, hostname);
112.         }
113.
114.     }
115.     class ServerThread extends Thread {
116.         private TServer server;
117.         ServerThread(TProcessor processor, int port) throws Exception {
118.             TNonblockingServerSocket serverTransport = new TNonblockingServerSocket(port);
119.             TThreadedSelectorServer.Args tArgs = new TThreadedSelectorServer.Args(serverTransport);
120.             TProcessorFactory processorFactory = new TProcessorFactory(processor);
121.             tArgs.processorFactory(processorFactory);
122.             tArgs.transportFactory(new TFramedTransport.Factory());
123.             tArgs.protocolFactory( new TBinaryProtocol.Factory(true, true));
124.             server = new TThreadedSelectorServer(tArgs);
125.         }
126.
127.         @Override
128.         public void run(){
129.             try{
130.                 //启动服务
131.                 server.serve();
132.             }catch(Exception e){
133.                 //
134.             }
135.         }
136.
137.         public void stopServer(){
138.             server.stop();
139.         }
140.     }
141.
142.     public void close() {
143.         serverThread.stopServer();
144.     }
145. }

四、客户端获取服务代理及连接池实现
客户端连接池实现：ThriftClientPoolFactory.java

[java] view plaincopyprint?



1. package cn.slimsmart.thrift.rpc;
2.
3. import java.net.InetSocketAddress;
4.
5. import org.apache.commons.pool.BasePoolableObjectFactory;
6. import org.apache.thrift.TServiceClient;
7. import org.apache.thrift.TServiceClientFactory;
8. import org.apache.thrift.protocol.TBinaryProtocol;
9. import org.apache.thrift.protocol.TProtocol;
10. import org.apache.thrift.transport.TFramedTransport;
11. import org.apache.thrift.transport.TSocket;
12. import org.apache.thrift.transport.TTransport;
13.
14. import cn.slimsmart.thrift.rpc.zookeeper.ThriftServerAddressProvider;
15.
16. /**
17.  * 连接池,thrift-client for spring
18.  */
19. public class ThriftClientPoolFactory extends BasePoolableObjectFactory<TServiceClient> {
20.
21.     private final ThriftServerAddressProvider serverAddressProvider;
22.     private final TServiceClientFactory<TServiceClient> clientFactory;
23.     private PoolOperationCallBack callback;
24.
25.     protected ThriftClientPoolFactory(ThriftServerAddressProvider addressProvider, TServiceClientFactory<TServiceClient> clientFactory) throws Exception {
26.         this.serverAddressProvider = addressProvider;
27.         this.clientFactory = clientFactory;
28.     }
29.
30.     protected ThriftClientPoolFactory(ThriftServerAddressProvider addressProvider, TServiceClientFactory<TServiceClient> clientFactory,
31.             PoolOperationCallBack callback) throws Exception {
32.         this.serverAddressProvider = addressProvider;
33.         this.clientFactory = clientFactory;
34.         this.callback = callback;
35.     }
36.
37.     static interface PoolOperationCallBack {
38.         // 销毁client之前执行
39.         void destroy(TServiceClient client);
40.
41.         // 创建成功是执行
42.         void make(TServiceClient client);
43.     }
44.
45.     public void destroyObject(TServiceClient client) throws Exception {
46.         if (callback != null) {
47.             try {
48.                 callback.destroy(client);
49.             } catch (Exception e) {
50.                 //
51.             }
52.         }
53.         TTransport pin = client.getInputProtocol().getTransport();
54.         pin.close();
55.     }
56.
57.     public boolean validateObject(TServiceClient client) {
58.         TTransport pin = client.getInputProtocol().getTransport();
59.         return pin.isOpen();
60.     }
61.
62.     @Override
63.     public TServiceClient makeObject() throws Exception {
64.         InetSocketAddress address = serverAddressProvider.selector();
65.         TSocket tsocket = new TSocket(address.getHostName(), address.getPort());
66.         TTransport transport = new TFramedTransport(tsocket);
67.         TProtocol protocol = new TBinaryProtocol(transport);
68.         TServiceClient client = this.clientFactory.getClient(protocol);
69.         transport.open();
70.         if (callback != null) {
71.             try {
72.                 callback.make(client);
73.             } catch (Exception e) {
74.                 //
75.             }
76.         }
77.         return client;
78.     }
79.
80. }

客户端服务代理工厂实现：ThriftServiceClientProxyFactory.java

[java] view plaincopyprint?



1. package cn.slimsmart.thrift.rpc;
2.
3. import java.lang.reflect.InvocationHandler;
4. import java.lang.reflect.Method;
5. import java.lang.reflect.Proxy;
6.
7. import org.apache.commons.pool.impl.GenericObjectPool;
8. import org.apache.thrift.TServiceClient;
9. import org.apache.thrift.TServiceClientFactory;
10. import org.springframework.beans.factory.FactoryBean;
11. import org.springframework.beans.factory.InitializingBean;
12.
13. import cn.slimsmart.thrift.rpc.ThriftClientPoolFactory.PoolOperationCallBack;
14. import cn.slimsmart.thrift.rpc.zookeeper.ThriftServerAddressProvider;
15.
16. /**
17.  * 客户端代理
18.  */
19. @SuppressWarnings({ "unchecked", "rawtypes" })
20. public class ThriftServiceClientProxyFactory implements FactoryBean, InitializingBean {
21.
22.     private Integer maxActive = 32;// 最大活跃连接数
23.
24.     // ms,default 3 min,链接空闲时间
25.     // -1,关闭空闲检测
26.     private Integer idleTime = 180000;
27.     private ThriftServerAddressProvider serverAddressProvider;
28.
29.     private Object proxyClient;
30.     private Class<?> objectClass;
31.
32.     private GenericObjectPool<TServiceClient> pool;
33.
34.     private PoolOperationCallBack callback = new PoolOperationCallBack() {
35.         @Override
36.         public void make(TServiceClient client) {
37.             System.out.println("create");
38.         }
39.
40.         @Override
41.         public void destroy(TServiceClient client) {
42.             System.out.println("destroy");
43.         }
44.     };
45.
46.     public void setMaxActive(Integer maxActive) {
47.         this.maxActive = maxActive;
48.     }
49.
50.     public void setIdleTime(Integer idleTime) {
51.         this.idleTime = idleTime;
52.     }
53.
54.     public void setServerAddressProvider(ThriftServerAddressProvider serverAddressProvider) {
55.         this.serverAddressProvider = serverAddressProvider;
56.     }
57.
58.     @Override
59.     public void afterPropertiesSet() throws Exception {
60.         ClassLoader classLoader = Thread.currentThread().getContextClassLoader();
61.         // 加载Iface接口
62.         objectClass = classLoader.loadClass(serverAddressProvider.getService() + "$Iface");
63.         // 加载Client.Factory类
64.         Class<TServiceClientFactory<TServiceClient>> fi = (Class<TServiceClientFactory<TServiceClient>>) classLoader.loadClass(serverAddressProvider.getService() + "$Client$Factory");
65.         TServiceClientFactory<TServiceClient> clientFactory = fi.newInstance();
66.         ThriftClientPoolFactory clientPool = new ThriftClientPoolFactory(serverAddressProvider, clientFactory, callback);
67.         GenericObjectPool.Config poolConfig = new GenericObjectPool.Config();
68.         poolConfig.maxActive = maxActive;
69.         poolConfig.minIdle = 0;
70.         poolConfig.minEvictableIdleTimeMillis = idleTime;
71.         poolConfig.timeBetweenEvictionRunsMillis = idleTime / 2L;
72.         pool = new GenericObjectPool<TServiceClient>(clientPool, poolConfig);
73.         proxyClient = Proxy.newProxyInstance(classLoader, new Class[] { objectClass }, new InvocationHandler() {
74.             @Override
75.             public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
76.                 //
77.                 TServiceClient client = pool.borrowObject();
78.                 try {
79.                     return method.invoke(client, args);
80.                 } catch (Exception e) {
81.                     throw e;
82.                 } finally {
83.                     pool.returnObject(client);
84.                 }
85.             }
86.         });
87.     }
88.
89.     @Override
90.     public Object getObject() throws Exception {
91.         return proxyClient;
92.     }
93.
94.     @Override
95.     public Class<?> getObjectType() {
96.         return objectClass;
97.     }
98.
99.     @Override
100.     public boolean isSingleton() {
101.         return true;
102.     }
103.
104.     public void close() {
105.         if (serverAddressProvider != null) {
106.             serverAddressProvider.close();
107.         }
108.     }
109. }

下面我们看一下服务端和客户端的配置;

服务端spring-context-thrift-server.xml

[html] view plaincopyprint?



1. <?xml version="1.0" encoding="UTF-8"?>
2. <beans xmlns="http://www.springframework.org/schema/beans"
3.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
4.     xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
5.     xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
6.                 http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
7.                 http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
8.                 http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd"
9.     default-lazy-init="false">
10.
11.     <!-- zookeeper -->
12.     <bean id="thriftZookeeper" class="cn.slimsmart.thrift.rpc.zookeeper.ZookeeperFactory"
13.         destroy-method="close">
14.         <property name="zkHosts"
15.             value="192.168.36.54:2181,192.168.36.99:2181,192.168.36.189:2181" />
16.         <property name="namespace" value="cn.slimsmart.thrift.rpc.demo" />
17.         <property name="connectionTimeout" value="3000" />
18.         <property name="sessionTimeout" value="3000" />
19.         <property name="singleton" value="true" />
20.     </bean>
21.     <bean id="sericeAddressRegister"
22.         class="cn.slimsmart.thrift.rpc.zookeeper.ThriftServerAddressRegisterZookeeper"
23.         destroy-method="close">
24.         <property name="zkClient" ref="thriftZookeeper" />
25.     </bean>
26.     <bean id="echoSerivceImpl" class="cn.slimsmart.thrift.rpc.demo.EchoSerivceImpl" />
27.
28.     <bean id="echoSerivce" class="cn.slimsmart.thrift.rpc.ThriftServiceServerFactory"
29.         destroy-method="close">
30.         <property name="service" ref="echoSerivceImpl" />
31.         <property name="port" value="9000" />
32.         <property name="version" value="1.0.0" />
33.         <property name="weight" value="1" />
34.         <property name="thriftServerAddressRegister" ref="sericeAddressRegister" />
35.     </bean>
36.
37.     <bean id="echoSerivce1" class="cn.slimsmart.thrift.rpc.ThriftServiceServerFactory"
38.         destroy-method="close">
39.         <property name="service" ref="echoSerivceImpl" />
40.         <property name="port" value="9001" />
41.         <property name="version" value="1.0.0" />
42.         <property name="weight" value="1" />
43.         <property name="thriftServerAddressRegister" ref="sericeAddressRegister" />
44.     </bean>
45.
46.     <bean id="echoSerivce2" class="cn.slimsmart.thrift.rpc.ThriftServiceServerFactory"
47.         destroy-method="close">
48.         <property name="service" ref="echoSerivceImpl" />
49.         <property name="port" value="9002" />
50.         <property name="version" value="1.0.0" />
51.         <property name="weight" value="1" />
52.         <property name="thriftServerAddressRegister" ref="sericeAddressRegister" />
53.     </bean>
54. </beans>

客户端：spring-context-thrift-client.xml

[html] view plaincopyprint?



1. <?xml version="1.0" encoding="UTF-8"?>
2. <beans xmlns="http://www.springframework.org/schema/beans"
3.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
4.     xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
5.     xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
6.                 http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
7.                 http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
8.                 http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd"
9.     default-lazy-init="false">
10.
11.     <!-- fixedAddress -->
12.     <!--
13.     <bean id="fixedAddressProvider" class="cn.slimsmart.thrift.rpc.zookeeper.FixedAddressProvider">
14.          <property name="service" value="cn.slimsmart.thrift.rpc.demo.EchoSerivce" />
15.          <property name="serverAddress" value="192.168.36.215:9001:1,192.168.36.215:9002:2,192.168.36.215:9003:3" />
16.     </bean>
17.     <bean id="echoSerivce" class="cn.slimsmart.thrift.rpc.ThriftServiceClientProxyFactory">
18.         <property name="maxActive" value="5" />
19.         <property name="idleTime" value="10000" />
20.         <property name="serverAddressProvider" ref="fixedAddressProvider" />
21.     </bean>
22.    -->
23.     <!-- zookeeper   -->
24.     <bean id="thriftZookeeper" class="cn.slimsmart.thrift.rpc.zookeeper.ZookeeperFactory"
25.         destroy-method="close">
26.         <property name="zkHosts"
27.             value="192.168.36.54:2181,192.168.36.99:2181,192.168.36.189:2181" />
28.         <property name="namespace" value="cn.slimsmart.thrift.rpc.demo" />
29.         <property name="connectionTimeout" value="3000" />
30.         <property name="sessionTimeout" value="3000" />
31.         <property name="singleton" value="true" />
32.     </bean>
33.     <bean id="echoSerivce" class="cn.slimsmart.thrift.rpc.ThriftServiceClientProxyFactory" destroy-method="close">
34.         <property name="maxActive" value="5" />
35.         <property name="idleTime" value="1800000" />
36.         <property name="serverAddressProvider">
37.             <bean class="cn.slimsmart.thrift.rpc.zookeeper.ThriftServerAddressProviderZookeeper">
38.                 <property name="service" value="cn.slimsmart.thrift.rpc.demo.EchoSerivce" />
39.                 <property name="version" value="1.0.0" />
40.                 <property name="zkClient" ref="thriftZookeeper" />
41.             </bean>
42.         </property>
43.     </bean>
44. </beans>

运行服务端后，我们可以看见zookeeper注册了多个服务地址。

详细实例这里就不详述了，请参考实例代码：https://github.com/slimina/thrift-zookeeper-rpc

关于Thrift设计优化文档：

Thrift RPC服务框架日志的优化

[转载] 基于zookeeper、连接池、Failover/LoadBalance等改造Thrift 服务化

原文：http://www.cnblogs.com/scott19820130/p/4919174.html
