The TCA9546A is a 4-channel, bidirectional translating switch for I 2 C buses that supports Standard-Mode (100
kHz) and Fast-Mode (400 kHz) operation
TCA9546A是一个４频道双向传输的i2c复用芯片，可以支持标准的100KHZ和高速传输的400KHZ.
The TCA9546A features I 2 C control using a single 8-bit control register
in which the four least significant bits control the enabling and disabling of the 4 switch channels of I 2 C data flow
TCA9546A使用一个8位的控制寄存器，其中的低４位来控制开关这４路i2c数据流频道．

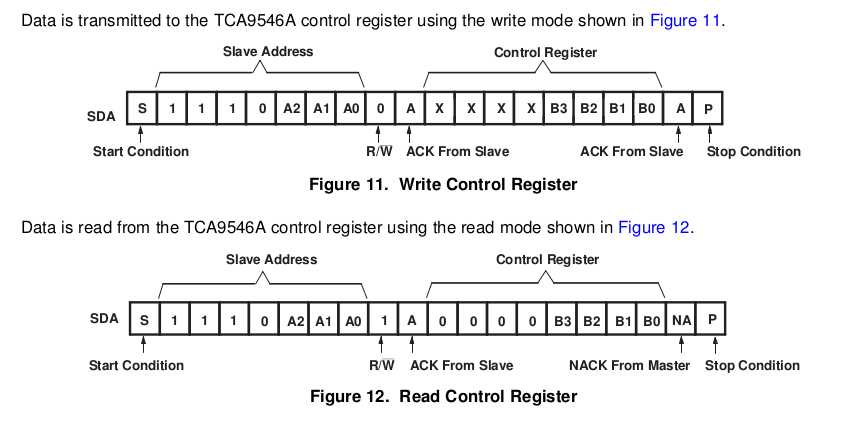

The connections of the I 2 C data path are controlled by the same I 2 C master device that is switched to
communicate with multiple I 2 C slaves. After the successful acknowledgment of the slave address (hardware
selectable by A0 and A1 pins), a single 8-bit control register is written to or read from to determine the selected
channels
A0和A1是硬件连接，如果接地那么就全是０.
由于我遇到的情况,A2,A1,A0均接地，所以slave address = 0xE0.

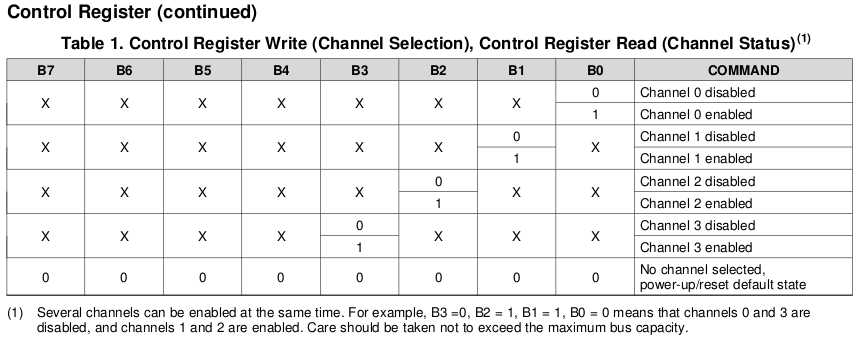

下表是控制寄存器的情况．
0x01 channel0
0x02 channel1
0x04 channel2
0x08 channel3
原文：http://www.cnblogs.com/biglucky/p/4711097.html
